    Diamond Grille Security Screens

    Prowler Proof’s Diamond Designs look similar to other Security Screens, but have a closer look... You’ll soon notice that there are no visible joints – it looks and feels like the security screen is made in one piece. Which is not far from the truth. Prowler Proof’s security screens are not held together by screws or rivets, they are welded. This adds strength…and good looks.

    Prowler Proof Diamond security screens are available as hinge doors, sliding doors and window screens, custom-made to your home. You have 300 colours to choose from, as well as a range of manufactured options.

    Diamond Hinge Doors

    With its welded, seamless corners Prowler Proof Diamond is Australia’s strongest and best looking diamond hinge door.

    protec hinge door options

    Diamond Sliding Doors

    The beautiful seamless corners are more noticeable on sliding doors than on any other Prowler Proof Diamond product.

    protec hinge door options

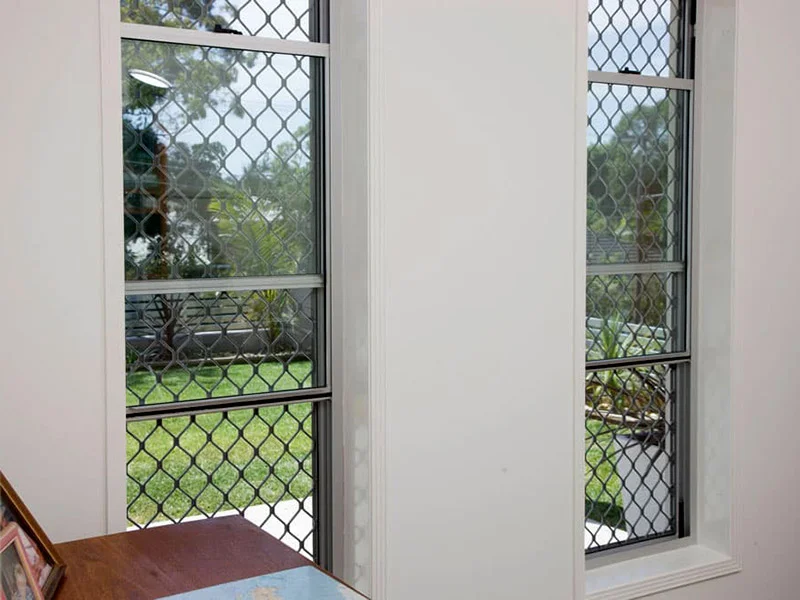

    Diamond Window Screens

    The seamless corners make Prowler Proof Diamond the strongest and best looking diamond window screen in Australia.

    protec hinge door options

    Diamond Colours

    All Prowler Proof Diamond products come in 50 standard colours and another 250 optional colours. There is no extra delivery time and only a small premium on optional colours.

    Diamond Screen Options


    3 point lock

    3 Point Lock

    3 point lock

    1 Point Lock

    3 point lock

    Mid Rail

    3 point lock

    Solid Panel

    3 point lock

    Cross Brace

    3 point lock

    Mullion

    3 point lock

    Petway Hatch

    3 point lock

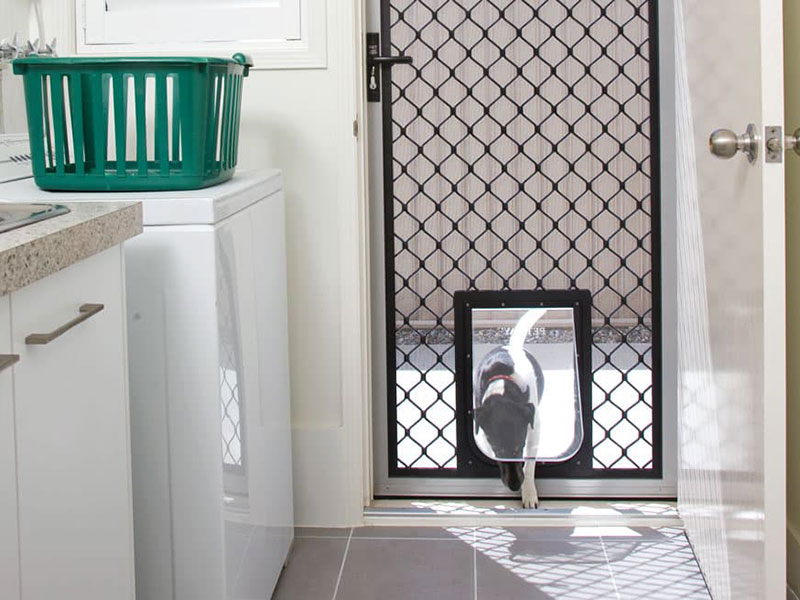

    Pet Door

    3 point lock

    Petway Pet Door

    3 point lock

    Port Hole

    A Closer Look at Diamond...

    No matter which Prowler Proof Diamond design you prefer, you'll get one of the strongest security screens on the market.

    10 year replacement warranty badge

    Full Replacement Warranty

    All Prowler Proof product is covered by our 10 year replacement warranty. It's Australia's only screen replacement warranty and means you will get a brand new product if something goes wrong with your screen.

    Diamon Grille Security Screen

    Good Transparency

    While the grille partially obstructs your view, airflow is still high and allows the breeze in for ventilation.

    2 Diamond Security Grille with welded corners

    Welded Corners

    All Prowler Proof products feature fully welded frame corners. A weld can be stronger than parts joined by a screw or rivet. It looks better too. The weld means the screen looks like it's made in one piece. You will immediately notice the difference when you compare Prowler Proof with a product that is held together by screws or rivets.

    Close up view of an Aluminium Diamond Grille

    Aluminium Grille

    The Diamond range provides several options of the traditional grille pattern for an economical security alternative.

    Colour sample of Colourbond powdercoat paint options

    Qualicoat Accredited Powder Coating

    Prowler Proof is one of only 10 powder coating applicators in Australia to be approved by Qualicoat International. Qualicoat is an international benchmark of quality. Qualicoat International audits Prowler Proof’s powder coating line twice a year, to allow us to retain our certification. The powder coating is a key element in the appearance of a security screen. The long term benefit of choosing a Qualicoat certified screen is superior corrosion protection – as evidenced in the fact that Prowler Proof is the only security screen to pass the acetic acid salt spray test and the only manufacturer to offer a 10 year replacement warranty.

    Australian Standards Testing

    All designs have been put through the Australian Standards Security Test (AS 5039) and passed with ease. The 1,000 hour salt spray tests (AS 2331) are no match either. Even though they take place in an enclosed chamber at +35º C and almost 100% humidity with a solution saltier than sea water. You won't find a stronger diamond design security screen on the Australian market.

    Security test icon

    Security

    The Australian Standards (AS 5039-2008) test consists of six separate tests that all have to be passed by the same test sample. The tests include dynamic impact test, jemmy test, pull test, probe test, shear test and knife shear test.

    Bush fire test icon

    Bushfire

    Bushfire prone zones require that openable windows must be screened with corrosion-resistant steel, bronze or aluminium mesh with an opening of less than 2 mm x 2 mm (AS 3959-2009). The fire attenuation test (FS 4302/3572) shows the reduction in radiant heat flux level provided by the screen.

    Corrosion test icon

    Corrosion

    Whenever two different metals interact there is a risk of corrosion. The tests (AS 2331.3.2 and AS 2331.3.1) to show corrosion-resistance are the acetic acid salt spray test and neutral salt spray test.

    Insect protection test icon

    Insect Protection

    The mosquito protection test tests a screens ability to keep mosquitoes out over an extended period of time.

    Access control test icon

    Access Control

    Allow unassisted access for pets or people, through the addition of optional access control accessories.

    Fall prevention test icon

    Fall Prevention

    The National Construction Code (NCC) (BCA 2013) requires that window openings be either restricted or screened, in certain circumstances, to prevent children falling. Screens that resist an outward horizontal action of 250 N meet the code and mean that window restrictors, that prevent the window being open more than 125mm, can be removed.

    Diamond Installations

    Free Measure & Quote

    Servicing ALL Brisbane areas including Griffin, North Lakes, Mango Hill, Murrumba Downs, Warner, Dakabin, Narangba, Kallangur & many more.

    Please contact us via phone, email or via our quote form to arrange an obligation free quote. We would be delighted to discuss all the available options with you.

    If you are planning to build, or are in the process of building, just email us your floor and elevation plans and we can give you an indicative quote.
